Forge Division

Forging Capabilities

Forging Capabilities

Forging Capabilities

  • Bars/shafts from Ø100mm to Ø850mm by up to 7,5 meters in length either stepped or parallel
  • Gear blanks up to Ø2000mm by Ø650mm high
  • Various rings up to 2.8 meters in diameter by 650mm high
  • Bushes up to 1700mm Ø by 1200mm long with various bore sizes
  • Forgings from 10Kg to 10 Tons

Hammers

Forging Capabilities

Forging Capabilities

  • 1 , 1.5 and 3 Ton hammers
  • In line 3T manipulator works in tandem with 3T hammer


Ring Rolling

Forging Capabilities

Hydraulic Presses

  • 3 Ring mills
  • Profile roll capabilities include raised face weld neck flanges and tyres of different sizes
  • Various rings up to 2.8 meters in diameter by 650mm high

Hydraulic Presses

Hydraulic Presses

Hydraulic Presses

  • 1000 Ton open die press
  • 1400 Ton open die press with 5 Ton manipulator
  • 1500 Ton open die press with 1 x 8 Ton  manipulator and 1 x 12 T rail-bound manipulator



Expander Sizers

Hydraulic Presses

Expander Sizers

  • 2 Expander sizers are also used to ensure accurate ring roundness and to meet tight tolerances

Saw Bay

Hydraulic Presses

Expander Sizers

  • Mutiple band saws able to cut raw material from ingot up to Ø1100mm

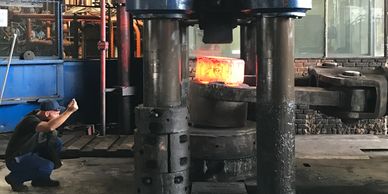

1500T Press

1500T Press swaging round bar

3 Ton Hammer
